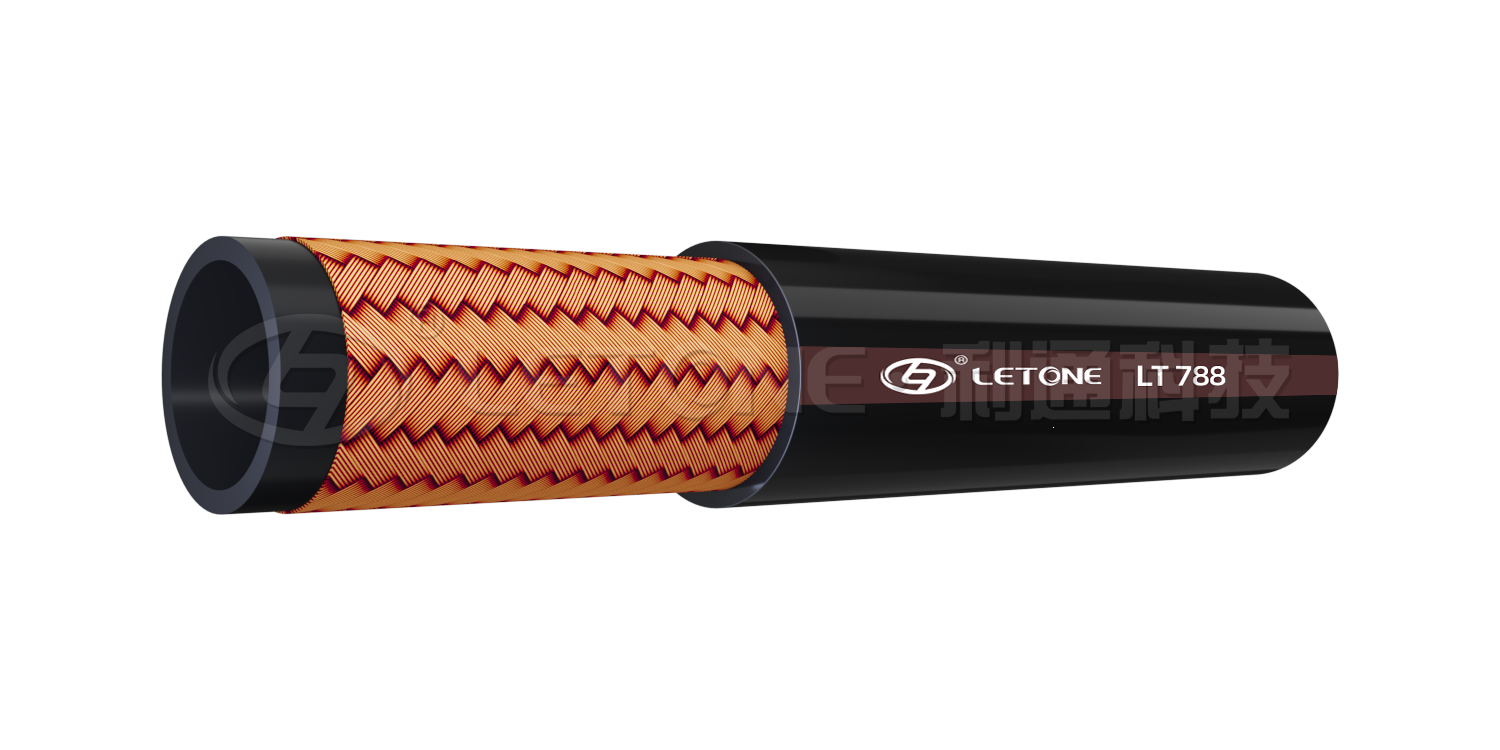

Selang Penyemprotan Pasir
| SIZE | I.D mm | O.D mm | Max.W.P | P.P | Min.B.P | Min.B.R | W.T | |||
| DASH | IN | Min | Max | Min | Max | Min | MPa | MPa | mm | kg/m |
| -10 | 5/8 | 15.5 | 16.7 | 28.2 | 29.8 | 1.0 | 2.0 | 4.0 | 105 | 0.98 |
| -12 | 3/4 | 18.8 | 19.8 | 34.2 | 35.8 | 1.0 | 2.0 | 4.0 | 130 | 1.14 |
| -16 | 1 | 24.8 | 25.8 | 42.8 | 45.2 | 1.0 | 2.0 | 4.0 | 150 | 1.50 |
| -20 | 1 1/4 | 31.6 | 32.6 | 48.8 | 51.5 | 1.0 | 2.0 | 4.0 | 190 | 1.80 |
| -24 | 1 1/2 | 37.7 | 38.8 | 57.5 | 60.5 | 1.0 | 2.0 | 4.0 | 240 | 2.10 |
| -28 | 1 3/4 | 44.6 | 45.6 | 62.5 | 65.5 | 1.0 | 2.0 | 4.0 | 260 | 2.30 |
| -32 | 2 | 50.7 | 52 | 69.5 | 72.5 | 1.0 | 2.0 | 4.0 | 300 | 2.75 |
| -40 | 2 1/2 | 63.7 | 65.3 | 83.5 | 86.5 | 0.8 | 1.6 | 3.2 | 800 | 3.50 |
| -48 | 3 | 75.5 | 77.3 | 100.0 | 104.0 | 0.8 | 1.6 | 3.2 | 920 | 4.50 |
| -56 | 3 1/2 | 88.5 | 90.5 | 113.0 | 117.0 | 0.8 | 1.6 | 3.2 | 1100 | 5.50 |
| -64 | 4 | 101.5 | 104 | 126.0 | 130.0 | 0.8 | 1.6 | 3.2 | 1300 | 6.50 |
