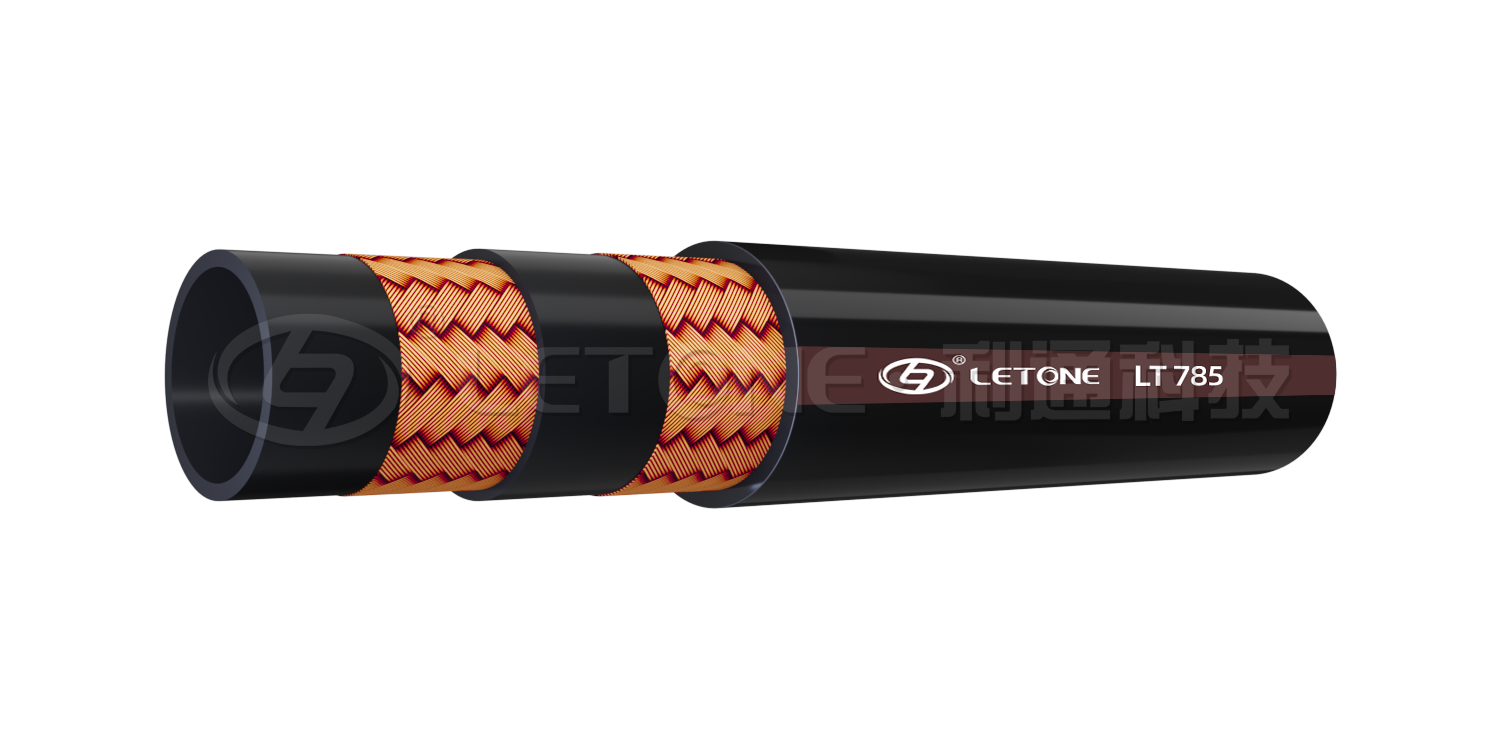

GB1186 Selang Udara Bertekanan
| SIZE | I.D mm | O.D mm | Max.W.P | Min.B.P | W.T | ||
| DASH | IN | Min | Max | Min | MPa | MPa | Kg/m |
| -8 | 1/2 | 12.5 | 14.0 | 23 | 1.0 | 4.0 | 0.34 |
| -10 | 5/8 | 15.5 | 17.0 | 26 | 1.0 | 4.0 | 0.40 |
| -12 | 3/4 | 18.5 | 20.0 | 29 | 1.0 | 4.0 | 0.45 |
| -16 | 1 | 24.5 | 26.0 | 35 | 1.0 | 4.0 | 0.48 |
| -20 | 11/4 | 31.5 | 33.0 | 45 | 1.0 | 4.0 | 0.95 |
| -24 | 11/2 | 37.5 | 39.0 | 52 | 1.0 | 4.0 | 1.25 |
| -32 | 2 | 50.0 | 52.5 | 66 | 1.0 | 4.0 | 1.60 |
| -8 | 1/2 | 12.5 | 14.0 | 23 | 2.0 | 8.0 | 0.34 |
| -10 | 5/8 | 15.5 | 17.0 | 26 | 2.0 | 8.0 | 0.41 |
| -12 | 3/4 | 18.5 | 20.0 | 29 | 2.0 | 8.0 | 0.46 |
| -16 | 1 | 24.5 | 26.0 | 35 | 2.0 | 8.0 | 0.50 |
| -20 | 11/4 | 31.5 | 33.0 | 45 | 2.0 | 8.0 | 0.97 |
| -24 | 11/2 | 37.5 | 39.0 | 52 | 2.0 | 8.0 | 1.27 |
| -32 | 2 | 50.0 | 52.5 | 66 | 2.0 | 8.0 | 1.70 |
