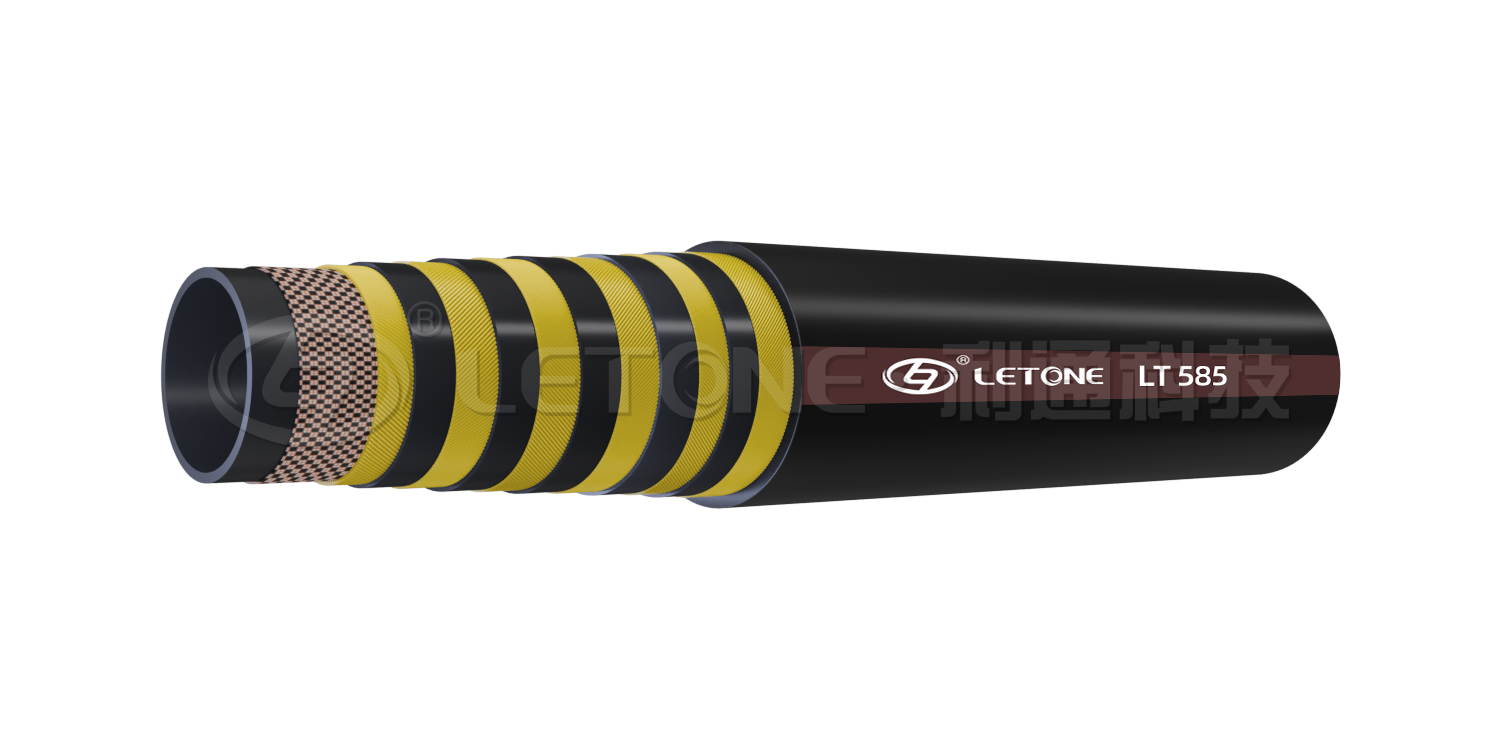

LT585

Parameter

• Specification	I.D		W.D		O.D		Max.W.P	P.P	Min.B.P	Min.B.R	W.T
  SIZE	Min	Max	Min	Max	Min	Max
  IN	mm	mm	mm	mm	mm	mm	MPa	MPa	MPa	mm	kg/m
  3/8-4	9.5	10.5	18.2	19.8	22.4	24.4	70	105	210	180	0.90
  1/2-4	12.5	13.5	21.4	23.0	25.2	27.2	57	86	172	210	1.05
  5/8-4	15.7	16.6	25.2	26.8	29.0	31.0	53	80	160	260	1.40
  3/4-4	18.7	19.8	29.2	30.4	33.0	35.0	46	69	140	280	1.75
  7/8-4	21.7	22.8	31.7	32.9	36.0	38.0	41	62	124	320	1.93
  1-4	24.7	25.8	35.2	36.4	38.8	41.2	35	53	112	360	2.14
  11/4-4	31.6	32.6	43.2	44.6	46.8	49.2	32	48	84	460	2.82
  11/2-4	37.7	38.8	49.8	51.8	54.3	56.7	25	38	75	560	3.41
  13/4-4	44.7	45.8	56.8	58.8	61.5	64.5	21	32	64	640	4.03
  2-4	50.5	52.0	62.8	64.8	65.0	67.4	21	32	64	720	4.43
  3/8-6	9.5	10.5	20.0	22.0	24.0	26.0	80	120	240	180	1.20
  1/2-6	12.5	13.5	23.4	24.6	26.5	28.5	72	108	216	210	1.40
  5/8-6	15.7	16.6	28.0	30.0	31.5	34.5	70	105	204	260	2.10
  3/4-6	18.7	19.8	32.0	34.0	35.5	37.5	60	90	180	280	2.47
  7/8-6	21.7	22.8	35.0	37.0	39.5	42.5	53	80	160	320	2.80
  1-6	24.7	25.8	38.0	39.6	41.8	44.2	50	75	152	360	3.05
  11/4-6	31.6	32.6	46.0	48.0	49.5	52.5	41	62	124	460	3.95
  11/2-6	37.7	38.8	53.0	55.0	56.5	59.5	36	54	108	560	4.93
  13/4-6	44.7	45.8	59.8	61.8	64.5	67.5	32	48	96	640	5.02
  2-6	50.5	52.0	66.2	68.2	70.5	73.5	32	48	96	720	6.73
