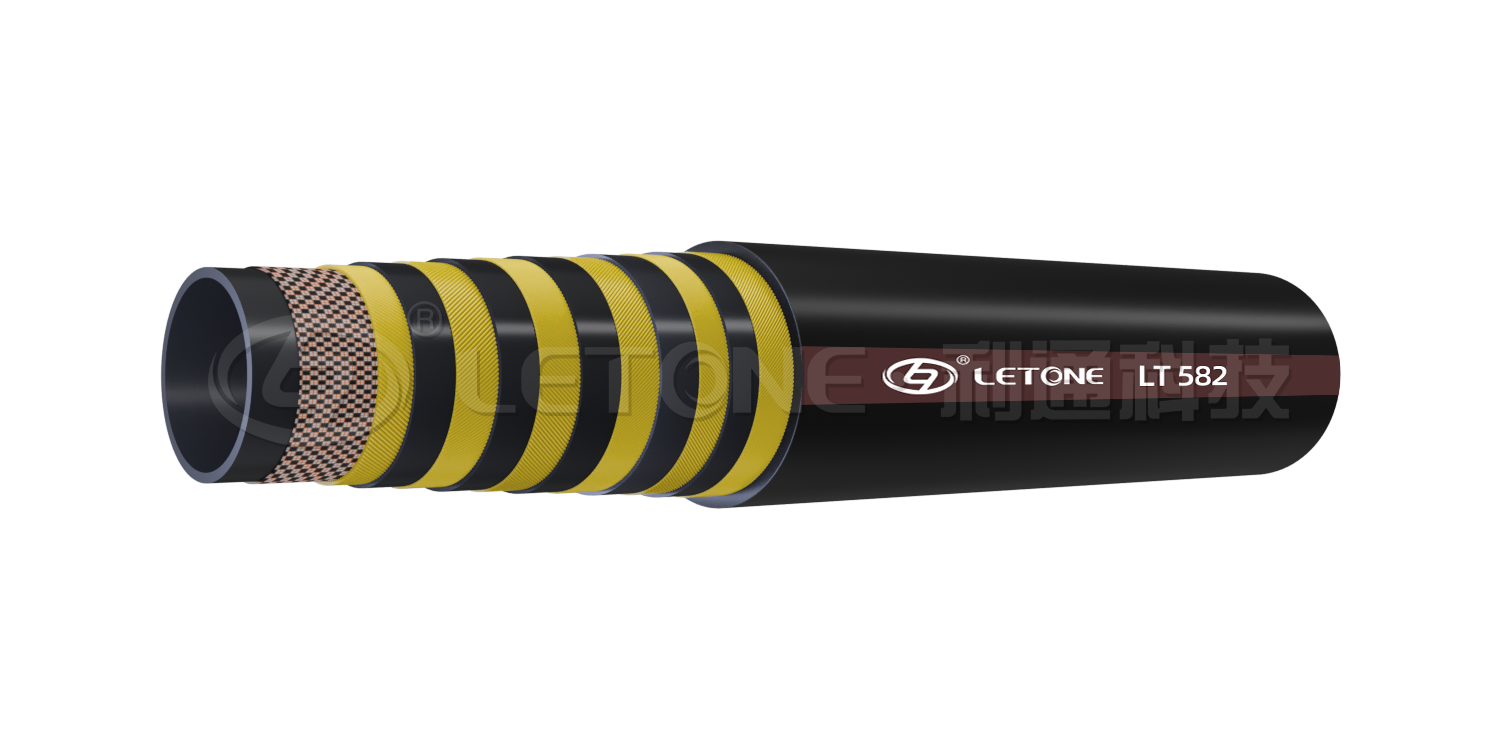

SAE 100R13|MSHA Selang Hidrolik Spiral Kawat
| SIZE | SIZE | I.D | W.D | O.D | Max.W.P | P.P | Min.B.P | Min.B.R | W.T | |||
| Min | Max | Min | Max | Min | Max | |||||||
| DASH | IN | mm | mm | mm | mm | mm | mm | MPa | MPa | MPa | mm | kg/m |
| -12 | 3/4 | 18.6 | 19.8 | 28.2 | 29.4 | 31.2 | 33.2 | 35 | 70 | 140 | 240 | 1.61 |
| -16 | 1 | 25.0 | 26.4 | 34.8 | 36.4 | 37.3 | 39.7 | 35 | 70 | 140 | 300 | 2.06 |
| -20 | 11/4 | 31.4 | 31.4 | 46.0 | 48.0 | 48.8 | 51.2 | 35 | 70 | 140 | 420 | 3.84 |
| -24 | 11/2 | 37.7 | 37.7 | 53.0 | 55.0 | 55.8 | 58.2 | 35 | 70 | 140 | 500 | 4.60 |
| -32 | 2 | 50.4 | 50.4 | 67.1 | 69.1 | 69.5 | 72.5 | 35 | 70 | 140 | 640 | 6.61 |
