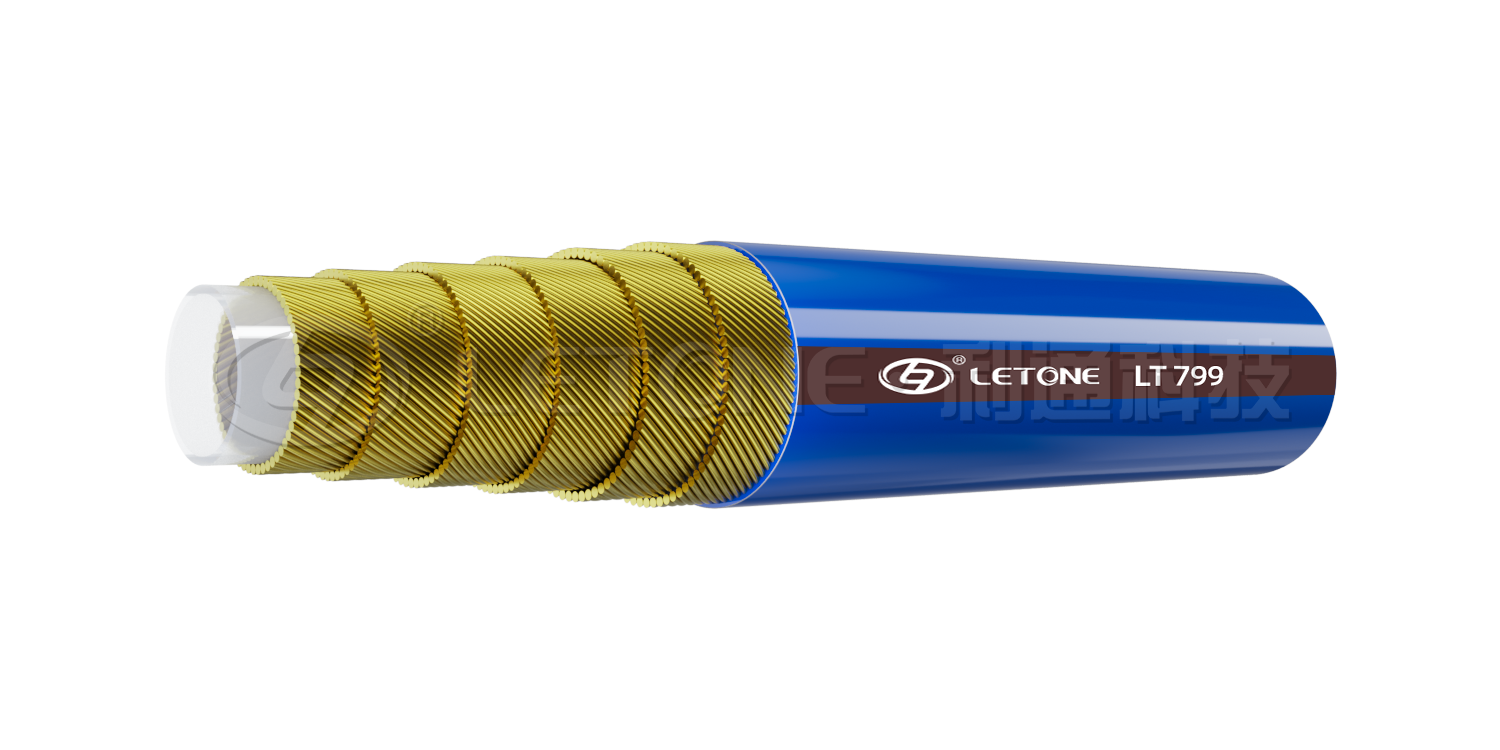

Ultra-High Pressure Thermoplastic Hose
| SIZE | I.D | 0.D | Max.W.P | Min.B.P | Min.B.R | |||
| DASH | IN | mm | mm | bar | psi | bar | psi | mm |
| -2 | 1/8-2 | 3.5 | 7.2 | 1040 | 15000 | 2600 | 37700 | 60 |
| - | 5/32-2 | 4.1 | 9.8 | 1200 | 17400 | 3000 | 43500 | 65 |
| -3 | 3/16-2 | 5.2 | 10.8 | 1040 | 15000 | 2600 | 37700 | 70 |
| -4 | 1/4-2 | 6.4 | 11.5 | 1040 | 15000 | 2600 | 37700 | 85 |
| -5 | 5/16-2 | 7.9 | 13.4 | 1040 | 15000 | 2600 | 37700 | 100 |
| -6 | 3/8-2 | 9.9 | 16.4 | 690 | 10000 | 1725 | 25000 | 140 |
| -8 | 1/2-2 | 12.8 | 20.4 | 690 | 10000 | 1725 | 25000 | 200 |
| 5/32-4 | 4 | 12.0 | 2200 | 31900 | 5500 | 79750 | 90 | |
| -3 | 3/16-4 | 5.1 | 12.8 | 1800 | 26100 | 4500 | 65250 | 95 |
| -4 | 1/4-4 | 6.3 | 14.3 | 1640 | 23700 | 4100 | 59450 | 100 |
| -5 | 5/16-4 | 8.2 | 16.6 | 1500 | 21700 | 3750 | 54375 | 105 |
| -6 | 3/8-4 | 9.9 | 18.8 | 1400 | 20300 | 3500 | 50750 | 110 |
| -8 | 1/2-4 | 12.8 | 22.5 | 1400 | 20300 | 3500 | 50750 | 120 |
| - | 5/32-6 | 4 | 11.8 | 2800 | 40600 | 7000 | 101500 | 140 |
| -3 | 3/16-6 | 5 | 14.8 | 2500 | 36200 | 6250 | 90625 | 200 |
| -4 | 1/4-6 | 6.3 | 16.0 | 2500 | 36200 | 6250 | 90625 | 210 |
| -5 | 5/16-6 | 7.9 | 19.0 | 2500 | 36200 | 6250 | 90625 | 220 |
| -6 | 3/8-6 | 9.9 | 20.8 | 2070 | 30000 | 5175 | 75000 | 250 |
| -8 | 1/2-6 | 12.8 | 27.0 | 1800 | 26100 | 4500 | 65250 | 290 |
| -12 | 3/4-6 | 18.8 | 35.0 | 1600 | 23200 | 4000 | 58000 | 350 |
| -3 | 3/16-8 | 4.7 | 16.0 | 4000 | 58000 | 10000 | 145000 | 200 |
| -4 | 1/4-8 | 6.3 | 18.0 | 3500 | 50750 | 8750 | 126875 | 230 |
| -5 | 5/16-8 | 7.6 | 21.5 | 3200 | 55100 | 8000 | 116000 | 280 |
| -8 | 1/2-8 | 12.8 | 28.7 | 3000 | 43600 | 7500 | 108750 | 350 |
