LT401L

EN12115 PTFE Low Pressure Multipurpose Hose

Application: Widely apply to various industries like chemical, petroleum, iron and steel smelting, F&B and medication etc.The productis suitable to work under high temperature environment. Depending on its feature of super corrosion-resistant,even strong corrosion chemicals like sulfuric acid, hydrochloric acid and sulfur reactant could not react with it. It is alsoone of the best choices for food and medical industries.

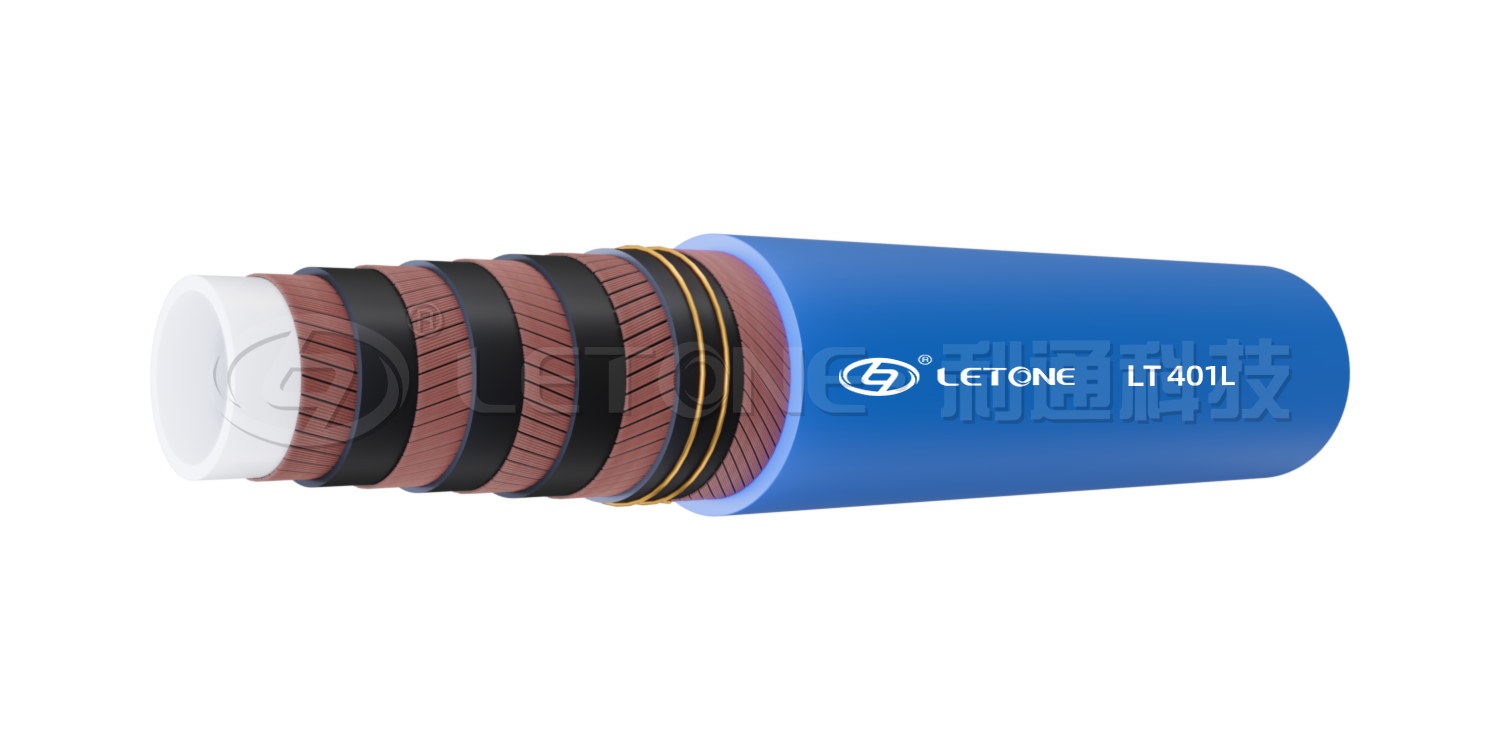

Hose Construction
Inner Tube: PTFE and EPDM synthetic rubber
Reinforcement:Multi-spiral high tensile synthetic fibers and helix spiral-wire
Outer Layer: Black or blue EPDM or FKM synthetic rubber (UPE layer is available)
Temperature Range: -55°C to 220°C (-67°F to 428°F)

Parameter

I.D		O.D		W.P	Min.B.P	W.T
in	mm	in	mm	psi	psi	kg/m
3/8	10	0.7	19	5075	20300	0.58
1/2	13	0.9	22.2	4060	16240	0.61
5/8	16	1.07	27.2	3625	14500	0.73
3/4	19	1.2	30.5	3190	12760	0.95
1	25	1.5	38.4	2465	9860	1.42
1-1/4	32	1.8	45.5	1885	7540	1.72
1-1/2	38	2.0	51.5	1305	5220	1.9
2	51	2.80	71	300	750	2.05
3	76	3.86	98	300	750	3.50
4	102	5.00	127	300	750	5.50

LT401L

EN12115 PTFE Low Pressure Multipurpose Hose

LT401H

EN12115 PTFE High Pressure Multipurpose Hose

LT1202L

En 12115 Upe Low Pressure Multipurpose Hose

LT1202H

EN12115 UPE High Pressure Multipurpose Hose
